No. | Item | Specification | Material | Unit | Quty | Remark |
1 | Raw water tank | 3000L | PE | Unit | 1 | Automatic level control |
2 | Raw Water Pump | CDLF8-40 | SS 304 Vertical | Pcs | 1 | CNP/CHINA 1.5KW |
3 | Multi -medium Sand Filter | WTMMF-800 Ø800X2300 | SS304 | Unit | 1 | Our Company |
Filter Medium | Total : 1250 KGS quart sands |
4 | Activated Carbon Filter | WTACF-700 Ø700X2300 | SS304 | Unit | 1 | Our company |
Filter Medium | Total :250KGS activated carbon |
5 | Auto-Dosing Device | WT-5 | Combination | Unit | 1 | Anti-scalant Our company Italy /SEKO Automatic |
Dosing Tank | 400L | PE | Pcs | 1 |
Dosing Pump | AKS603 | / | Pcs | 1 |
6 | Cartridge Filter | WTM-30'' Ø220X750 | SS 304 | Unit | 1 | Our company 2µm element |
Filter Element | Ø65X750 | PP | Pcs | 5 |
7 | RO System | WTRO-5000L | Combination | Set | 1 | PLC Controller CNP/CHINA 5.5KW Dow/USA Our company Made In China Made in China Our Company Our Company |
High Pressure Pump | CDLF8-160 | SS 304 Vertical | Pcs | 1 |
RO Membrane | BW30-365 | Complex | Pcs | 5 |
Membrane Hosing | WT8040-2 | FRP | Pcs | 3 |
Pressure Gauge | YIN-60 | SS 304 | Pcs | 2 |
Flow Meter | LZM-252 | Organic Glass | Pcs | 2 |
Assembly Valves | Ø38 | SS 304 | Set | 1 |
Frame | / | SS 304 | Set | 1 |
8 | Washing Device | CIP-5 | Combination | Set | 1 | Our Company |
Washing Tank | 80L | PE | Pcs | 1 |
Washing Pump | CHL4-20 | SS 304 Horizontal | Unit | 1 |

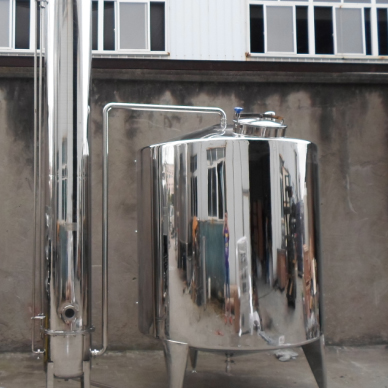

9 | RO Water Tank | 3M3 | SS 304 | Unit | 1 | Our Company 0.22µm Element Our Company |
Vent Filter | WTF-3 | SS 304 | Pcs | 1 |
Manhole | Ø400 | SS 304 | Pcs | 1 |
10 | Ozone Pump | CDL8-2 | SS 304 | Unit | 1 | CNP/CHINA 0.75KW |
11 | Ozone Sterilizing | 24 g | SS 304 Shell | Pcs | 1 | Our Company |
Air compressor,oxygenerator,ozone generator | 1 |
12 | Ozone Mixer tower | Ø300*3500 | SS04 | Unit | 1 | Our Company |
Titanium plate mixer/Tail gas exhaust device/manhole sight glass |
13 | Pipes & Fitting | Ø38 SS 304 | Our Company |
14 | Electric Control System |
Electric Control Box | / | SS 304 | Set | 1 | Our company Germany Korea Automatic Stop FRANCE Made In China |
PLC Programmable | SIEMENS | / | Pcs | 1 |
High and Low Pressure Switch | / | / | Pcs | 2 |
Conductivity Meter | CCT3320A | 4-20mA | Pcs | 1 |
Electric Appliance | SCHNEIDER | / | Set | 1 |
Wires&Cable | / | / | Set | 1 |
|
