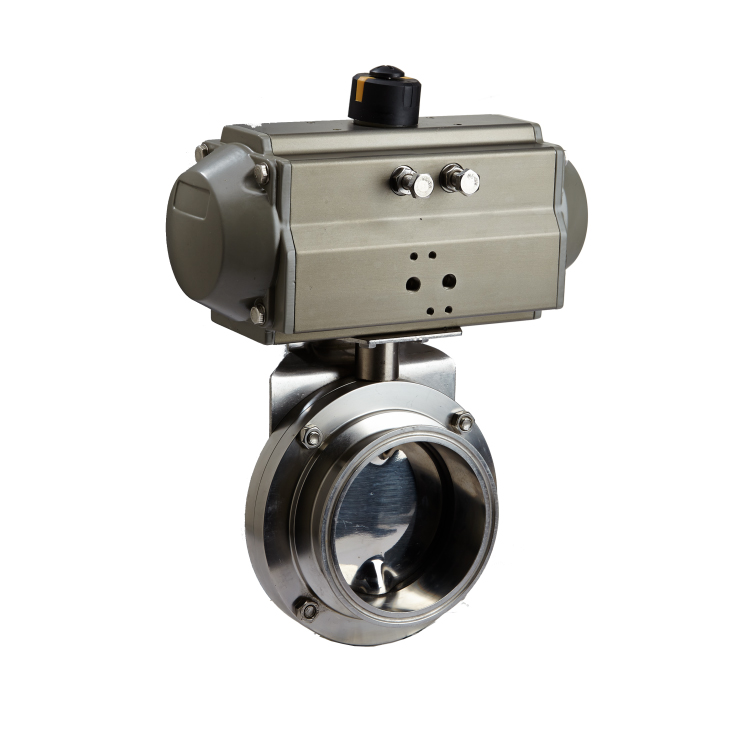

Pneumatic Sanitary Tr-clamp Butterfly Valve

Pneumatic sanitary tri-clamp butterfly l valve ,

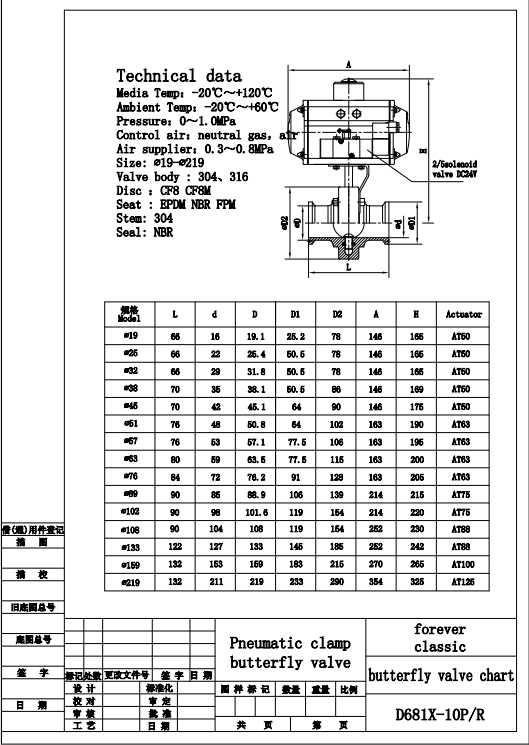

D681X-10P /R series

Nominal Diameter : 1/2”---8”

Pressure Range :0-10Bar

Medium Temperature : -10°--- +180°

Ambient Temperature : -10°--- +60°

Body Material : Stainless steel SS304 / ss316

Seating Material : EPDM /SILCON

Body Of Actuator :Aluminum Alloy

Actuator : AT series pneumatic actuator

Feature : Double acting /Single acting

Manufacturing Standard : GB,ISO ,ANSI,DIN
