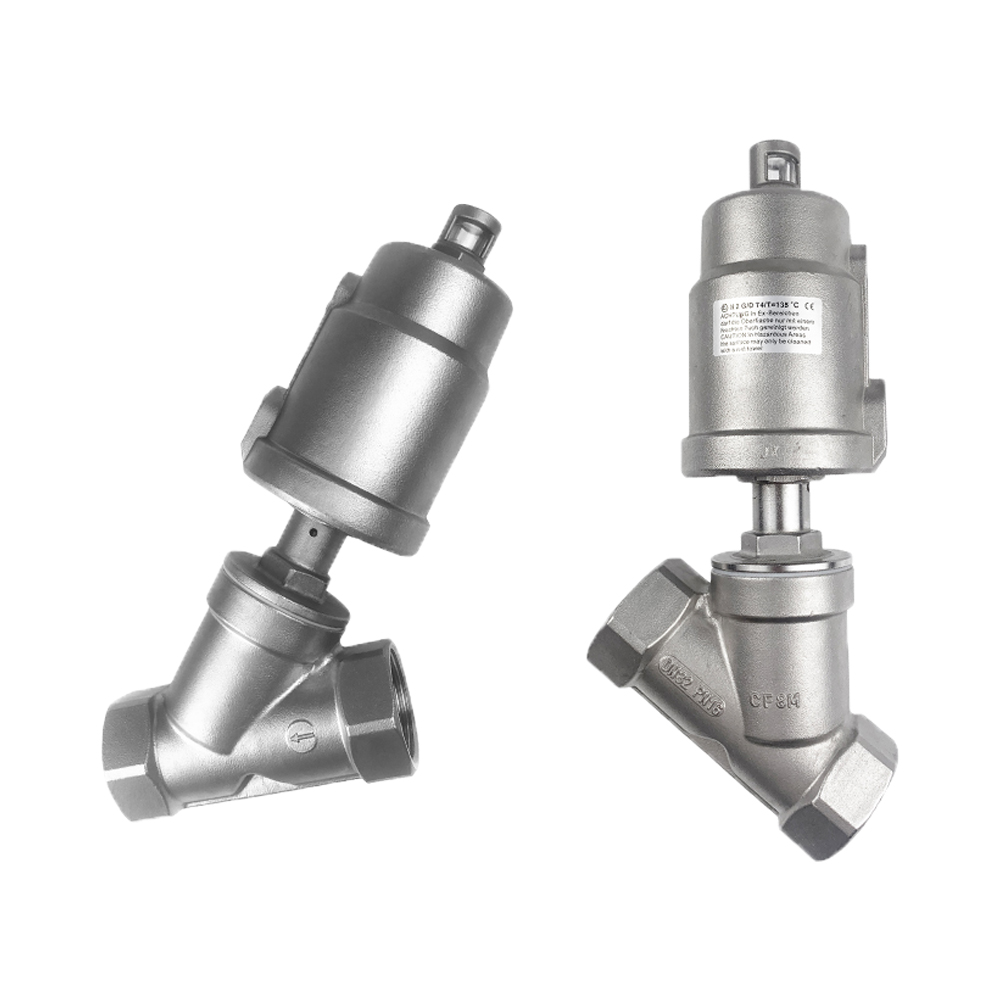

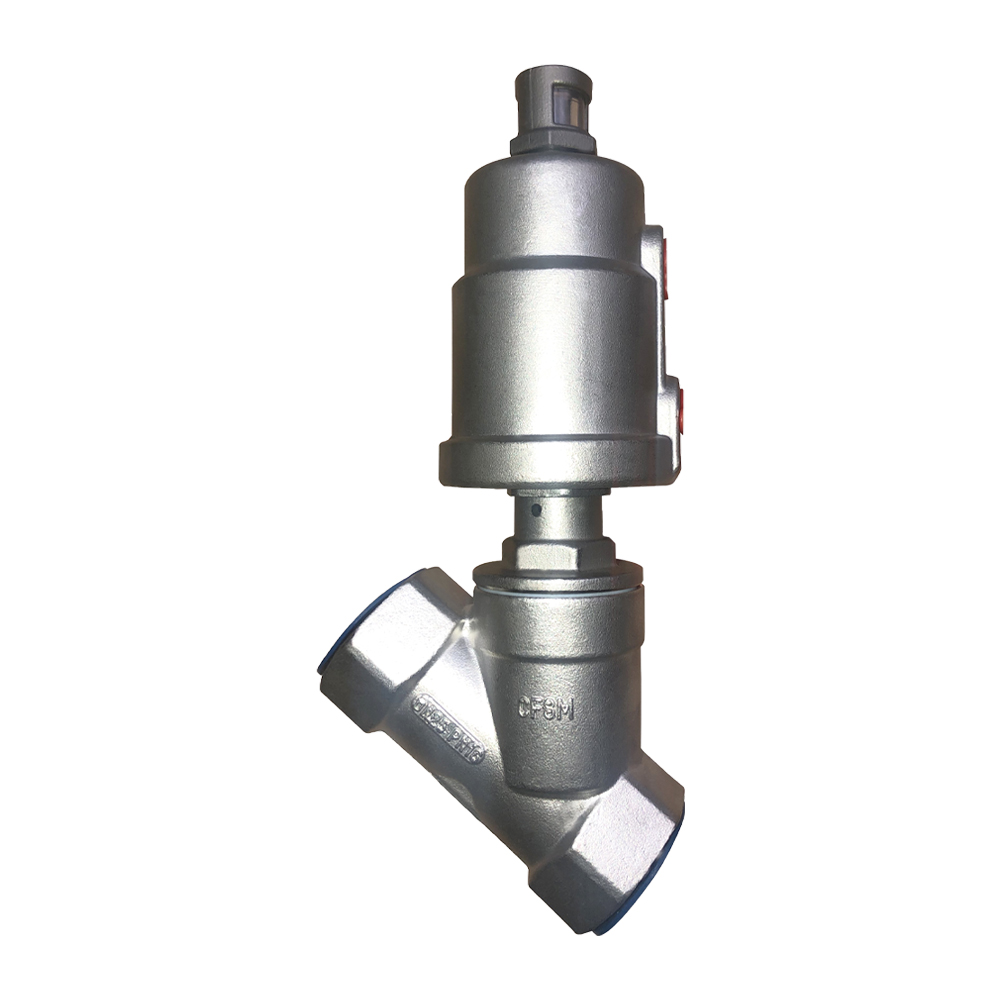

Stainless steel high temperature pneumatic steam thread corrosion resistant Y type angle seat valve for disinfection pharmacy
Advantages:
1. Large fluid amount, low resistance, no water-hammer
2. 2. Y-type shape enlarged the flowing section
3. 3. Actuator material is stainless steel, 360 angle rolling freely.
4. Usage:
1. Bear & drinks filling machinery
2. Textile printing & dying
3. Gas industry.
4. Chemical industrial
5. water / sewage disposal.
6. High temperature disinfection
7. water control
8. Medical disinfection

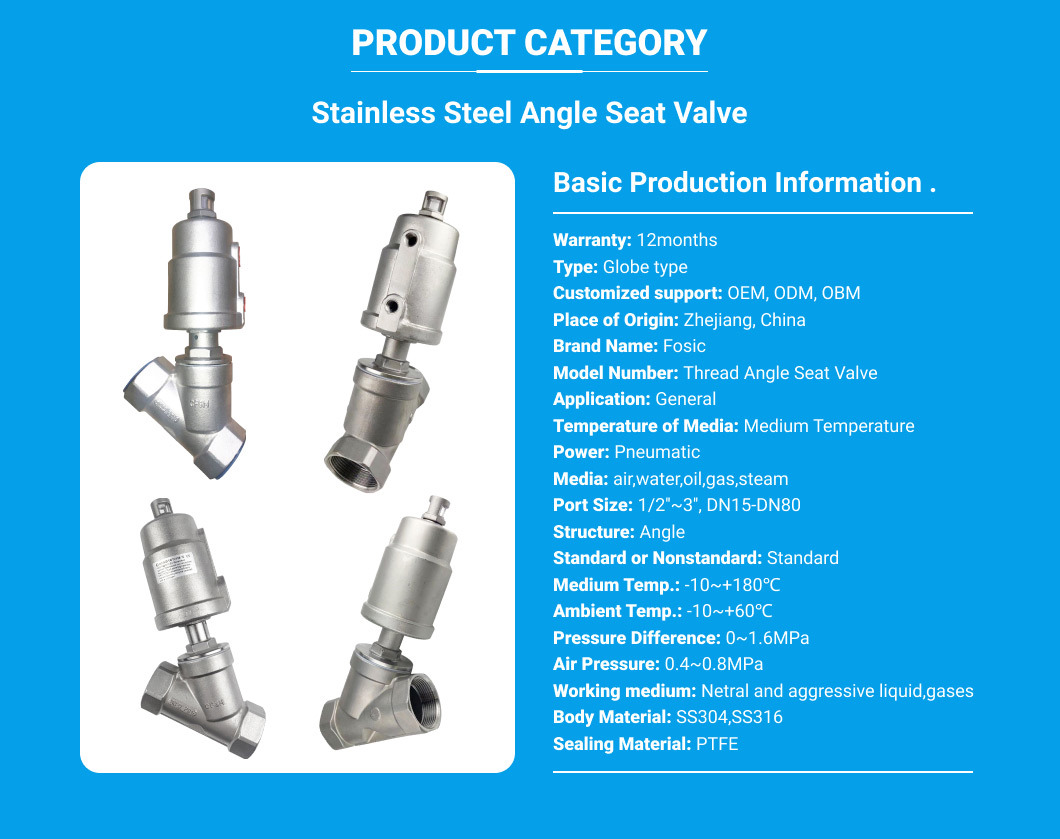

Data Sheet
Angle seat valve |
Available port size | DN15, 20, 25, 32, 40, 50,65 |
Fluid | Air, water, steam, gas, oil |
Control pressure | 0.3~0.8MPa |
Fluid pressure | 0~1.6MPa |
Actuator material | CF8 |
Valve body material | CF8 / CF8M |
Connection way | Thread, flange, welding, tri-clamp |
Control type | Normally closed, normally open, double action |
Angle seat valve |
Available port size | DN15, 20, 25, 32, 40, 50,65 |
Fluid | Air, water, steam, gas, oil |
Control pressure | 0.3~0.8MPa |
Fluid pressure | 0~1.6MPa |
Actuator material | CF8 |
Valve body material | CF8 / CF8M |
Connection way | Thread, flange, welding, tri-clamp |
Control type | Normally closed, normally open, double action |
