Usage:
For drinking water, wastewater, process water, industrial oxidation , bleaching, deodorization, waste gas treatment, space disinfection etc.,

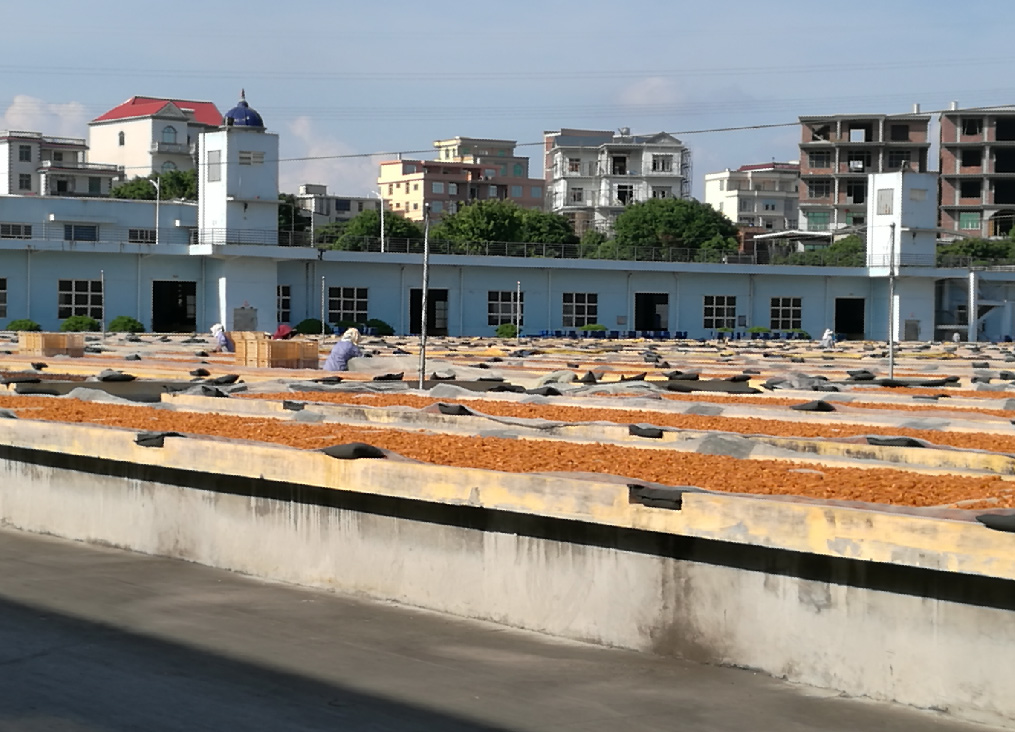

Candied dried fruit workshop disinfection by ozone generator
Municipal Sewage Handling & Waste Treatment
Tannery effluents treatment
Standards:
1. Comply with FDA attestation requirements
Parameter:
Products Specification
Model
|
Ozone production
|
Feed gas flow
|
Ozone Concentration
|
Cooling water flow
| Power consumption | Electronic Control Cabinet
Deimension(mm) | Ozone discharge chamber Dimension (mm) |
kg/h | Nm³/h | wt% | m³/h | Kwh/kgO³ | W D H | W D H |
FOSIC-1K | 1 | 7-9 | 8-10 | 1.5-2 | 14-17 | 700x800x1800 | 800x800x1800 |
FOSIC-2K | 2 | 14-18 | 8-10 | 3-4 | 14-17 | 800x800x1800 | 900x800x1800 |
FOSIC-3K | 3 | 21-26 | 8-10 | 4.5-6 | 14-17 | 1200x1000x1900 | 800x1000x1900 |
FOSIC-4K | 4 | 28-39 | 8-10 | 6-8 | 14-17 | 2000x900x1800 | 2100x900x1800 |
FOSIC-5K | 5 | 34-43 | 8-10 | 7.5-10 | 14-17 | 2000x900x1800 | 2100x1000x1900 |
FOSIC-6K | 6 | 41-52 | 8-10 | 9-12 | 14-17 | 2000x900x1800 | 2100x1000x1900 |
FOSIC-8K | 8 | 55-69 | 8-10 | 12-16 | 14-17 | 2200x1000x2000 | 2100x1100x2000 |
FOSIC-10K | 10 | 68-86 | 8-10 | 15-20 | 14-17 | 3300x1100x2040 | 2200x1200x2100 |
FOSIC-15K | 15 | 102-128 | 8-10 | 17.5-30 | 14-17 | 3700x1200x2040 | 3800x1000x2100 |
FOSIC-20K | 20 | 136-171 | 8-10 | 30-40 | 14-17 | 4000x1200x2140 | 3800x1100x2100 |
FOSIC-25K | 25 | 170-210 | 8-10 | 36-50 | 14-17 | 4000x1200x2140 | 3800x1200x2100 |
FOSIC-30K | 30 | 203-256 | 8-10 | 45-60 | 14-17 | 4500x1200x2250 | 3900x1200x2100 |
FOSIC-40K | 40 | 271-341 | 8-10 | 60-80 | 14-17 | 5600x1200x2350 | 3900x1300x2300 |
FOSIC-50K | 50 | 339-426 | 8-10 | 75-100 | 14-17 | 5600x1200x2350 | 3900x1400x2400 |
FOSIC-60K | 60 | 406-511 | 8-10 | 80-120 | 14-17 | 6000x1200x2350 | 3900x1500x2500 |
FOSIC-70K | 70 | 485-625 | 8-10 | 105-140 | 14-17 | 6200x1600x2250 | 3900x1600x2600 |
FOSIC-80K | 80 | 542-681 | 8-10 | 120-160 | 14-17 | 6200x1600x2250 | 4000x1800x2700 |
FOSIC-100K | 100 | 677-852 | 8-10 | 150-200 | 14-17 | 8500x1600x2350 | 4000x2000x285 |
Basic knowledge of Ozone
Ozone is an oxygen molecule made up of three oxygen atoms. The molecular formula is O3, one of which is connected with the other two oxygen atoms in the form of a single bond. Ozone is known as "green chemicals", is a strong oxidizing agent. It has four main functions of sterilization, decolorization, oxidation, deodorization and no residue, no pollution, is one of the environmental friendly green industrial raw materials. Ozone is one of the most powerful solutions for municipal, industrial and commercial water treatment challenges
Environmental conditions
Operating Temperature | 0ºC to +40ºC |
Altitude | If >1000 meters above sea level, the cooling effect become bad and the air outlet of air compressor will reduce |
Humidity | Maximum 85% relative humidity |
Atmosphere | Non-flammable, corrosive and conductive dust |
Atmospheric Pressure | 101.3KPa standard atmospheric pressure is required |
Working Area Conditions | Keep the room for ozone generator system dry and ventilated |
Waste water treatment oxidation process by ozone
· It is generally used for the outlet end of water, further reducing COD, decolorizing and ensuring the effluent index.
· The upgrading of grade B to A is achieved by ozone plus filtration technology.
· Intermediate water reuse is applied to bleaching and deodorization
Ozone function
· To further degrade the biodegradable organic matter.
· Reduce the chromaticity and turbidity of the effluent.
· Kill Escherichia coli and virus in water
· Remove the odor of water
Our Products advantage
· All in one equipment, easy to operate
· Over temperature protection, over-current protection, and over-voltage abnormality monitoring.
· Ozone leakage alarm, operation fault alarm monitorin
· Supply full set of auxiliary equipment, including air compressor, gas storage tank, filter, freezing dryer, adsorption dryer etc.
· Use special stainless steel tube for discharge chamber

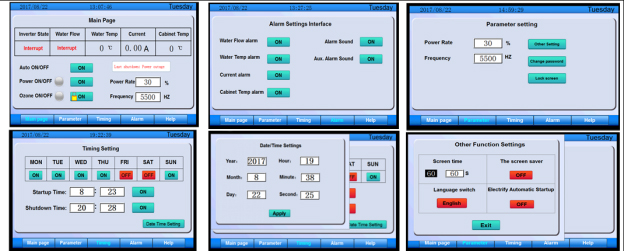

· With SIEMENS PLC touch screen automatic control system, users can achieve monitoring, control, switching, setting, report, alarm, cycle start-up, emergency shutdown etc. functions.
Core Technology

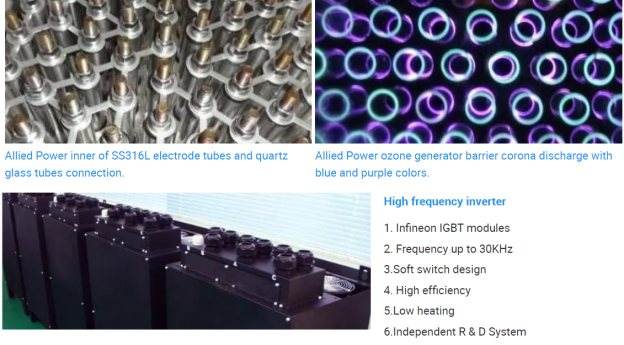

Ozone discharge chamber technology

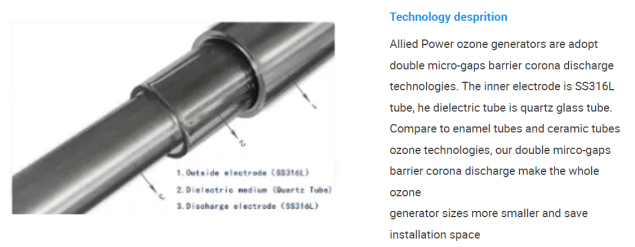

Special glass tube discharge chamber adopts double air gap discharge technology, high quality glass medium and matching dedicated power supply, fully exerts the efficiency of corona discharge to produce ozone, ensuring large output, high concentration and lower power consumption.
High power ozone dedicated dry-type transformer technology
The high voltage transformer converts the alternating current output from the inerter circuit into high voltage electricity suitable for generation of ozone by generating a dielectric barrier discharge in the chamber discharge body. In order to match the capacitive characteristics of the occurrence of the discharge of the chamber discharge body, the requirements of its parameters are different from those of ordinary transformers.
Ozone special frequency conversion power supply technology
The ozone generator control system is independently developed by the company to control the normal operation of the ozone generator power supply, and has anti-jamming, load short circuit protection, high operating temperature protection, with industry leading level, high operation reliability.
Packaging & Shipping
Packaging details: customized/wooden package
Delivery Details: 15--60 days based on capacity and quantity
Our Services
12 months warranty and free maintainance cost
24 after-sales service online
Whole life free technical support
Trace for order until you get the goods
Engineer available to go abroad for installation and training
