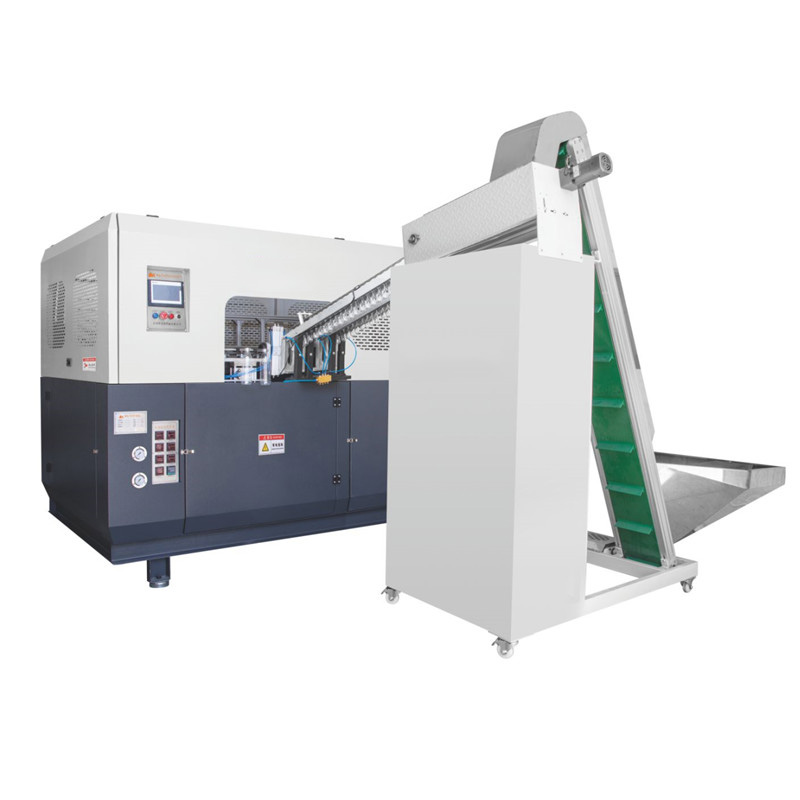

Automatic Blowing Machine

The machine features:

1, using Taiwan Delta (DELTA) computer control system, high reliability, fast, good stability

2,. the use of infrared lamp heat, strong penetration, rotation of the preform heating, orbit revolution, even heating. Reflection plate height width can be adjusted for different structure of perform heating.

3, automatic voltage regulators, automatic thermostat.

4, conveyor automatic blanks

5, automatic alarm, automatic detection break down, judged accurately

6, servo-driven shift, do not use cylinders, speed, smooth running and so on.

7, gas is divided into low pressure, low pressure and high pressure blowing air into three parts in order to meet the needs of blowing, pressure, high pressure blow products, low air pressure and stable operation.

8, uses the unique air system to make products of higher quality.

9, double crankshaft, connecting rod clamping, clamping force is strong, stable and reliable.

10, made of high tensile steel levers and templates of quality cast iron, durable, long life

11, Clamping with high rigidity linear Guide and moving parts, running briskly.

12, blow mold features: designed by CAD CAM production, blowing one mold  two-cavity , precision machining by CNC machine tools, achieve the smooth line capacity accurately, processing size consistent with the design.

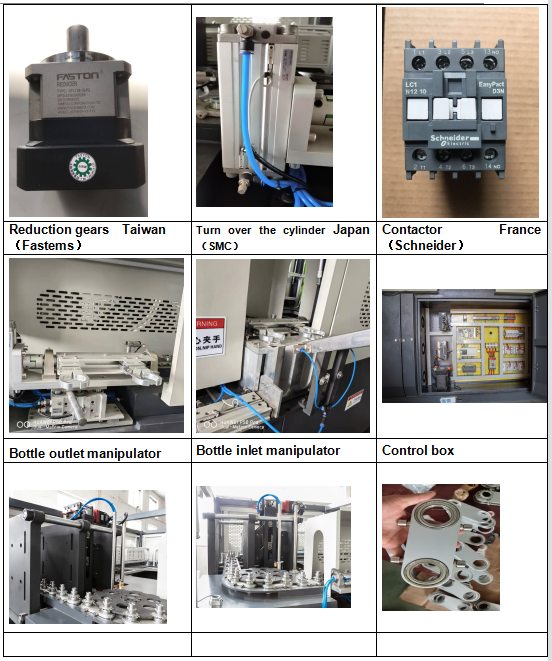

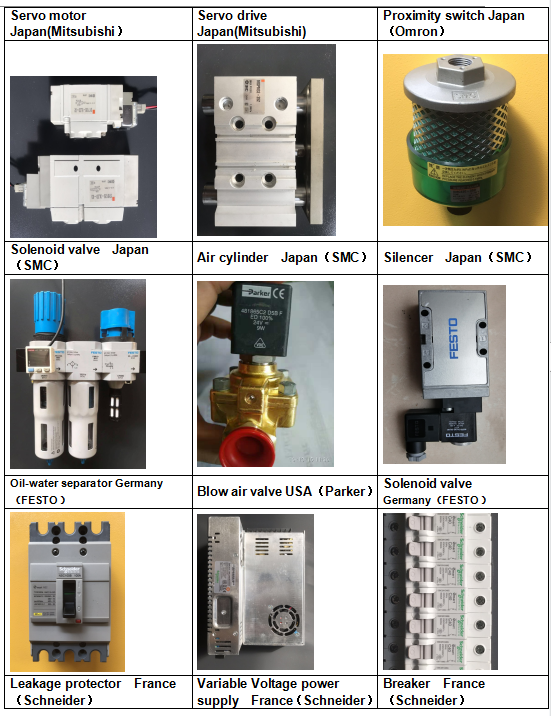

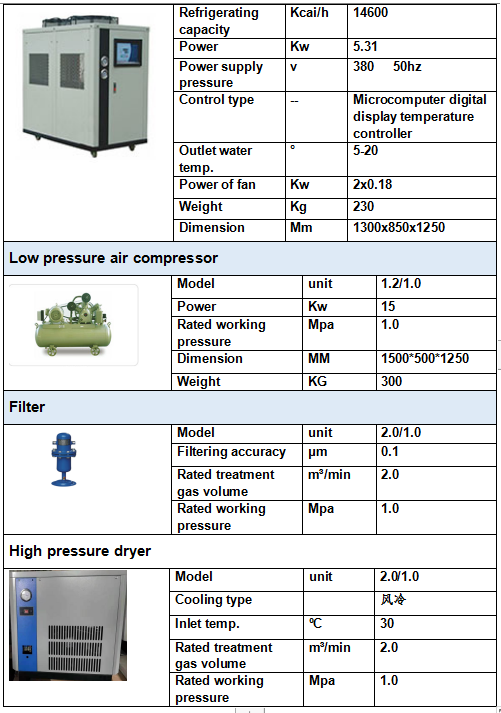

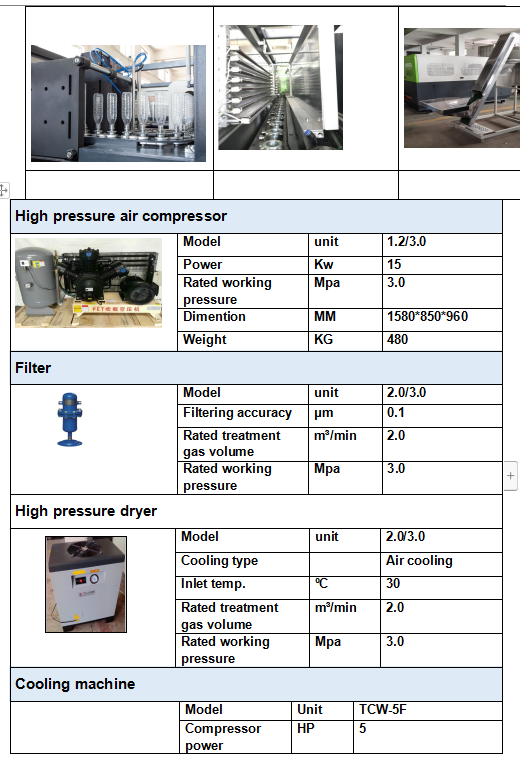

MQ-28A2 full-auto blowing machine configuration
