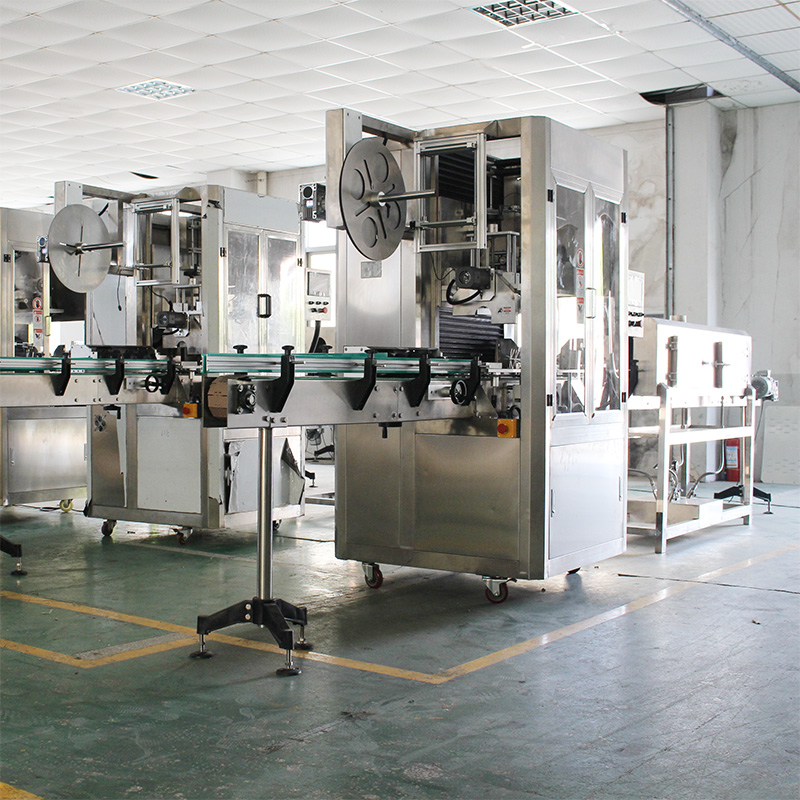

Automatic sleeve labeling machine
3.1Brief Introduction
1) Sleeve Labeling Machine is custom built to meet the exacting demands of manufacturers and suppliers. It can be used stand alone or integrated in-line and matching filling equipment speeds.
2) It is built upon a framework of seam welded, food grade stainless steel section. This solid foundation keeps movement and vibration to an absolute minimum to ensure consistent, accurate labeling.
3) Unit cutter head plane design in China which apply to the container of ∮30 mm—∮130 mm. you never need to change or debug it.It also has unique light touch human-machine screen,that means,auto search original location as well as safety and convenience which is ahead of other congener products.
4) Reasonable height which is convenience to fix the label; micro-computer auto figure which avoid enactment and adjustment. you only need to press it lightly ,the label will detect and locate automatically.The change of label is quick and convenience, besides,the cut place is absolutely exact .
5) The newly designed cutter stepper motor which speed is high ,action is exact,the cut is in order and the shrinking is beautiful.This design cooperate with the label synchronized location structure enable the precision of cut location within 1mm.
3.2Technical Parameter
No. | Item | Technical data |
1 | Import Power | 3.0KW |
2 | Import Voltage | ∮3, 380/220 VAC |
3 | Capacity(production speed) | 150 bottles per min |
4 | Dimension of Host Machine (mm) | L2100 × W850 × H2000 |
5 | Applicable Diameter Container (mm) | φ28 mm ~ φ120 mm |
6 | Applicable Label Length (mm) | 30~250 mm |
7 | Applicable Thickness Label (mm) | 0.03~0.13 mm |
8 | Applicable Inner Diameter of Paper Tube | 5''~10'' |
3.3Details Show
3.4Configuration
1 | PLC | FPX-C40T | Panasonic | Japan |
2 | Touch Screen | TK6070IP | WEINVIEW | Taiwan |
3 | High-speed Optical Fiber Sensor | FX-501 | SUNX | Japan |
4 | Photoelectric Sensor | CX-421 | SUNX | Japan |
5 | Photoelectric Sensor | CX-442 | SUNX | Japan |
6 | Photoelectric Sensor | PM-L44 | SUNX | Japan |
7 | Label Infeeding Servo Motor | MHMD042P1U(400W) | Panasonic | Japan |
8 | Label Infeeding Servo Drive | MBDDT2210003(400W) | Panasonic | Japan |
9 | Cutting Head Servo Motor | MHMD042P1U(400W) | Panasonic | Japan |
10 | Cutting Head Servo Drive | MBDDT2210003(400W) | Panasonic | Japan |
11 | Bottle Discharge AC Contactor | 5IK90GN-YF-5GN7.5K | Delta | Taiwan |
12 | Bottle Discharge Variable-frequency Drive | BFV00022DK | Panasonic | Japan |
13 | Bottle Conveyor AC Contactor | 5IK90GN-YFT-5GN15K | Delta | Taiwan |
14 | Bottle Conveyor AC Contactor | BFV00022DK | Panasonic | Japan |
15 | Conveyor Motor | RV50-15K-750W | WANSHIN | Taiwan |
16 | Conveyor Variable-frequency Drive | BFV00022DK | Panasonic | Japan |
17 | Label Feeder AC Contactor | RV50-15K-180 | WANSHIN | Taiwan |
18 | Label Feeder Variable-frequency Drive | ATV12H018M2 | Schneider | France |
19 | Framework Lifting AC Contactor | 51K90GU-CF-5GU30KB | Delta | Taiwan |
20 | Under-brush AC Contactor | 51K120A-CFT | Delta | Taiwan |
21 | Positioning Brush AC Contactor | 4IK25GN-CF-4GN3K | Delta | Taiwan |
22 | Draught Fan Motor | 180W | WANSHIN | Taiwan |
23 | Switch Knob | XB2-BD21 | Schneider | France |
24 | Switching Power Supply | S-50-24 | MeanWell | Taiwan |
25 | AC Contactor | LC1-D1810M5C | Schneider | France |
26 | Circuit-breaker | D20 2P | Schneider | France |
27 | Draught Fan | SF11025AT | Luann | Shanghai |
28 | Intermediate Relay | MY2NJ24VDC | OMRON | Japan |

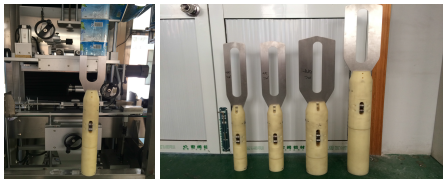

4. Mandrel
Making mandrels according to bottle sample. To ensure that the label can sleeve the mandrel smoothly, and to brush down and cut the label.
