Model NO. | Fosic |
Automatic Grade | Automatic |
Material Type | Liquid |
Filling Valve Head | Multi-Head |
Feed Cylinder Structure | Single-Room Feeding |
Dosing Device | Capacity Cup |
Filling Principle | Atmospheric Pressure |
Packaging Container Lifting Structure | Pneumatic Lifting |
Structure | Linear |
Packaging | Barrel |
Packaging Material | Plastic |
Keywords | Returnable Bucket Filling Machine |
Material | SUS304 / 316L |
Filling Product | Pure Water / Mineral Water |
Bottle Volume | 10L - 20L |
Filling Precision | 1% (Liquid Level) |
Capacity | 100bph - 2000bph |
Bottle Material | Pet Bucket / PC Bucket |
Function | Rinsing Filling Capping |
Voltage | Customized |
Control | PLC |
Certificate | Ce, ISO, SGS |
Transport Package | Wooden Case |
Specification | 16 CBM |
Trademark | Fosic |
Origin | Wenzhou |
HS Code | 8422309010 |
Production Capacity | 10 Sets Per Month |

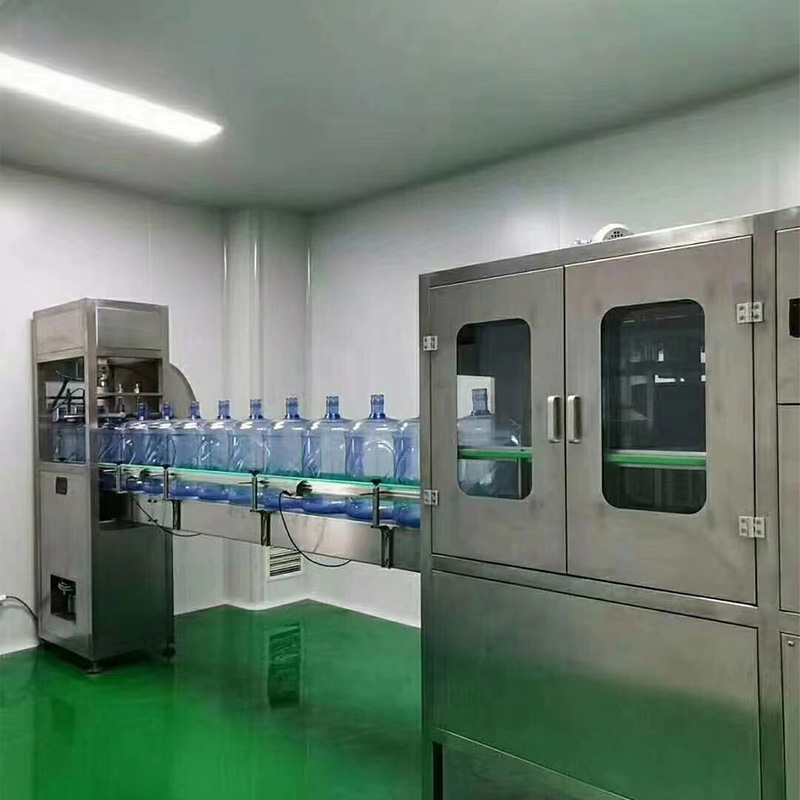

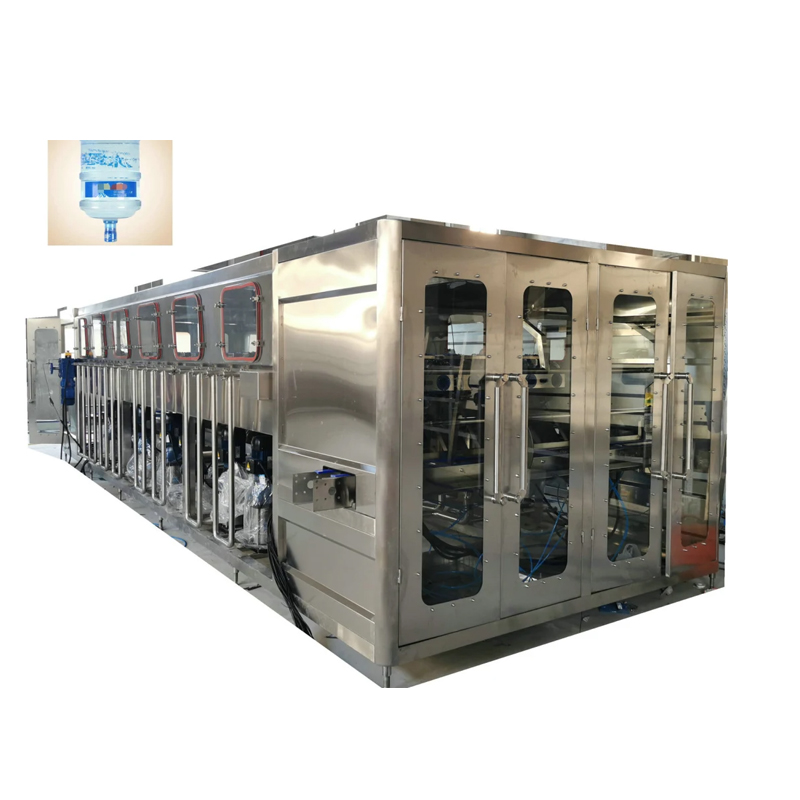

Automatic Bottled 5 Gallon Water Filling Line / 5Gallon Bucket Pure Water Washing Filling Capping Machine
This washing filling capping machine is mainly used for Non-aerated carbon dioxide drink, such as mineral water, pure water and soon.The machine design is shorten the time for the drink material contact with outside, Increase the sanitation condition throughout economy benefits.
Fosic Barreled Water filling machine combines washing,filling and rotary capping functions into one unit which is a fully automatic and high efficieney liquid packing equipment.
Barreled Water Filling Machine Technical Parameters: |
Filling speed: | 150-600bph (5 Gallon) |
Type of bottles | PET bottles of various shapes |
Bottle size | 270*490mm |
Filling Accuracy | 3~5mm (Liquid Level) |
Filling temperature | Ambient temperature |
Filling principle | Gravity filling |
Filling product | Mineral water, purified water, drinking water, flavor water , soda water , alkaline water , spring water and low alcoholic drinks. |
This washing filling capping machine is mainly used for Non-aerated carbon dioxide drink, such as mineral water, pure water and soon.The machine design is shorten the time for the drink material contact with outside, Increase the sanitation condition throughout economy benefits .

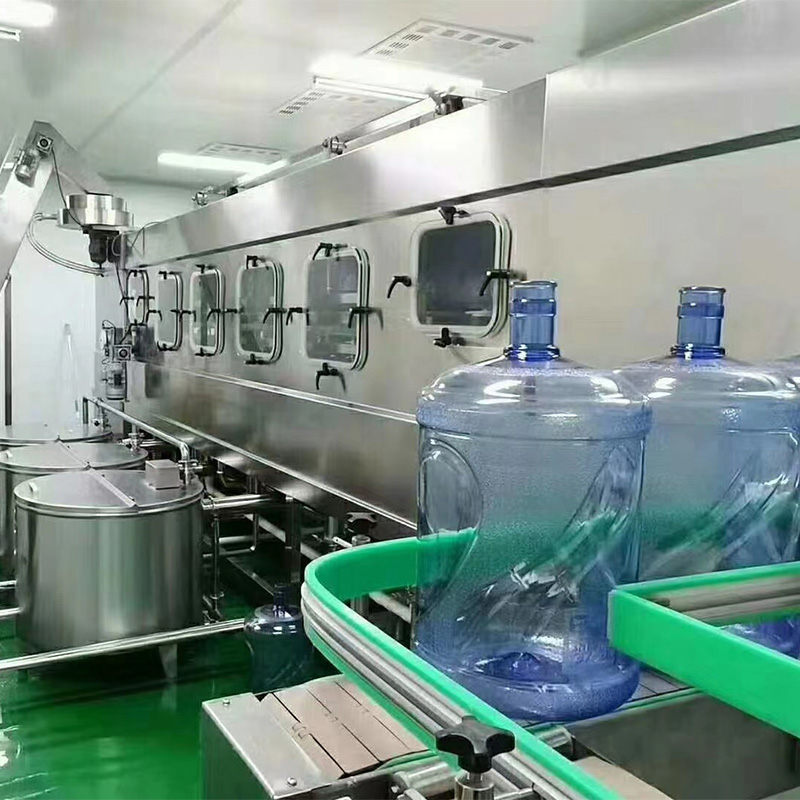

Washing Parts
- Into bottle way is air conveyor direct connection with bottle dial.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.

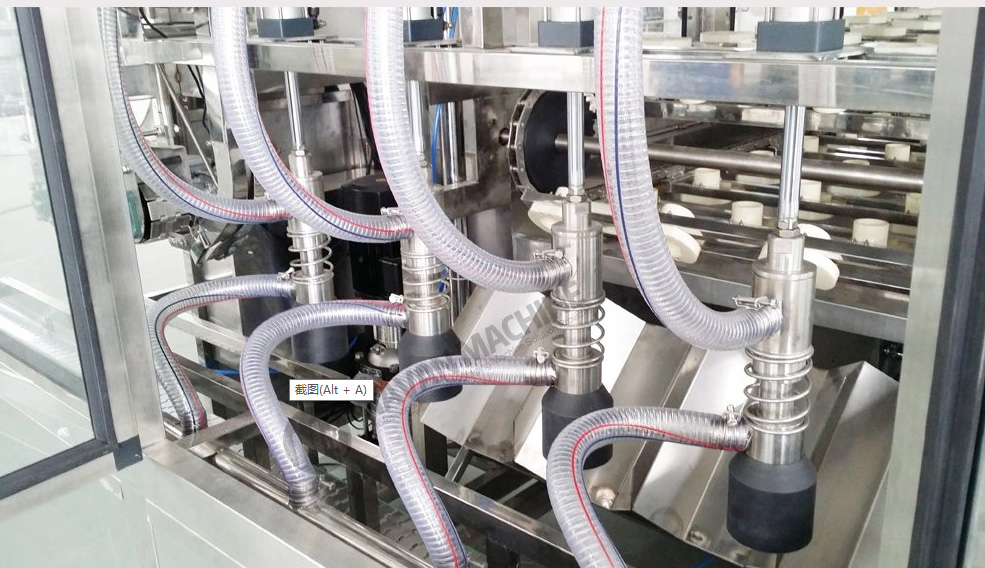

Filling Parts.
- 304/316 Stainless steel high precision filling nozzle
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304/316 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for flushing
- No bottle no filling machine
Product Parameters
Model | FS-150 | FS-300 | FS-450 | FS-600 |
Capacity | 150BPH | 300BPH | 450BPH | 600BPH |
Bottle Volume | 5GALLON | 5 GALLON | 5 GALLON | 5 GALLON |
Bottle Size | 270*490mm | 270*490mm | 270*490mm | 270*490mm |
Bottle high | 490mm | 490mm | 490mm | 490mm |
Machine power | 4.5KW | 7.5KW | 9 KW | 11 KW |
Machine size | 475x175x225CM | 470x210x225CM | 480x210x225CM | 485x210x225CM |

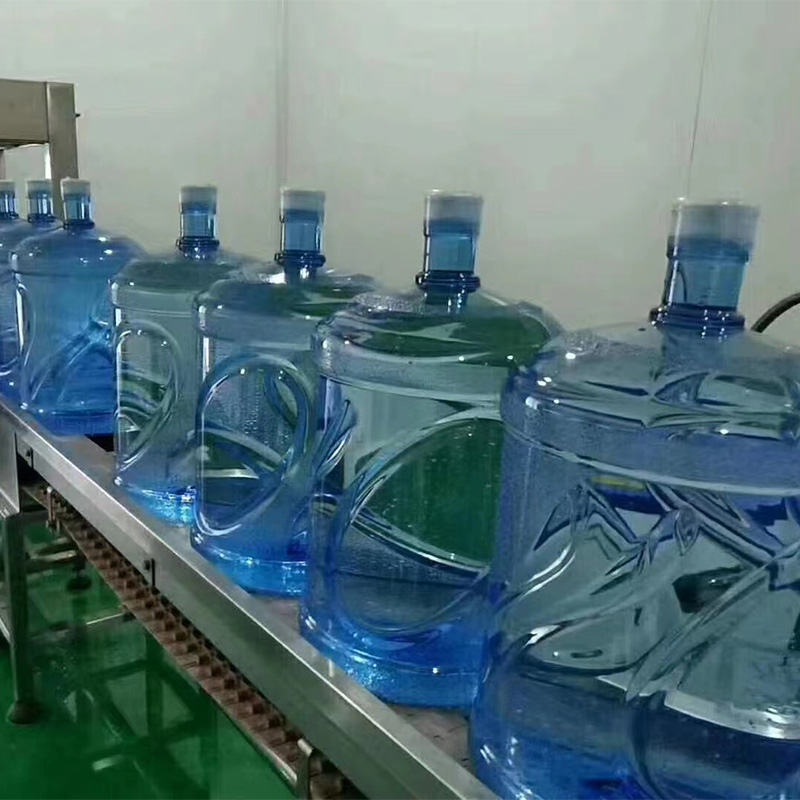

Capping Parts.
- Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
- All 304/316 stainless steel construction
- No bottle no capping
- Automatic stop when lack of bottle
- Capping effect is stable and reliable, Defective rate ≤0.2%
Fosic Service
The sample service
1.We can send you the video of the running machine for your reference .
2.You are always welcome to come to visit our factory, and watch the operation of the machines here . We will make the arrangement to pick you up when you reach airport or railway station .
3.If we get the permission of the customer who has brought the machines from us ,we will arrange your visiting to their factory.
Customized service
1.we can design the machines according your requirements(material ,power,filling type,the kinds of the bottles, and so on).
2.At the same time we will give you our professional suggestion on factory design , bottle design , label design .... etc
After-sales service
1.We will provide the B/L and concerning Invoice , Packing List , Certificate .... on time to make sure you can get the machine quickly
2.When you finish the Preparation conditions , we will send our engineer to your factory for the installation, testing and also training .
3.We provide one year warranty with spare parts free since machine installation done .
Fosic supply and manufacture the followings machines
1) Water treatment equipment--- Electrolytic water equipment, RO purified equipment, UF purified equipment, Sand filter, Carbon filter, Water softner, Sea Water treatment.
2) Filling Machine --- 2 in 1 Filling Capping Machine / 3 in 1 Washing filling capping machine / 4 in 1 Washing filling capping machine / 5 in 1 Washing filling capping machine ---for your water, beer , kombucha , Kvass , cabonated drink,juice,wine,vinegar, milk,tea and so on.
--- 100 to 2500ml bottle, 3-10L,11- 20L bottle (3-6gallon bottle)
--- PET bottle, Glass bottle, PP bottle and Can
--- Pressure Cap , Screw cap, Aluminum cap, Grown Cap , T-cork , Wooden Cork and three (four) twist caps etc.
3) Labeling Machine --- Stick label, Shrink sleeve label, Hot melt Opp labels. Wet gule label
4) Printer --- Manual code printer , Inkjet printer , Laser printer
5) Packing Machine ---- Shrink wrapper , Carton Packer , Palletizer , Conveyor system , Robot Packing System
6) Bottle Blowing Machine --- Linear and Rotary Blowing Machine for making plastic bottle
7)Injection Molding Machine --- for your cap and proform.
8) Subsidiary products for drink production --- Bottle Washer, Bottle Capper, Conveyor, Bottle Dryer, Bottle Warmer, Bottle Loading system, Bottle unscrambler, CIP system, Bottle Cooler, Bottle Sterilizer, Blending tank, Storage Tank, Sugar Melting Pot, Syrup Filter Conveyor and so on.
Fosic will supply you bottle design, label design, workshop design free and make Turnkey Project for you.
Don't hesitate to contact us if you show interesting on our beverage production machine and our company.
