With our sourcing ability and years of experience in providing packaged RO systems, we are confident to provide a solution for overseas OEMs for packaged RO systems outsourcing, either completed/tested systems or semi-production.
We provide standardized packaged sysetms and customized systems in our workshop in Wenzhou City.

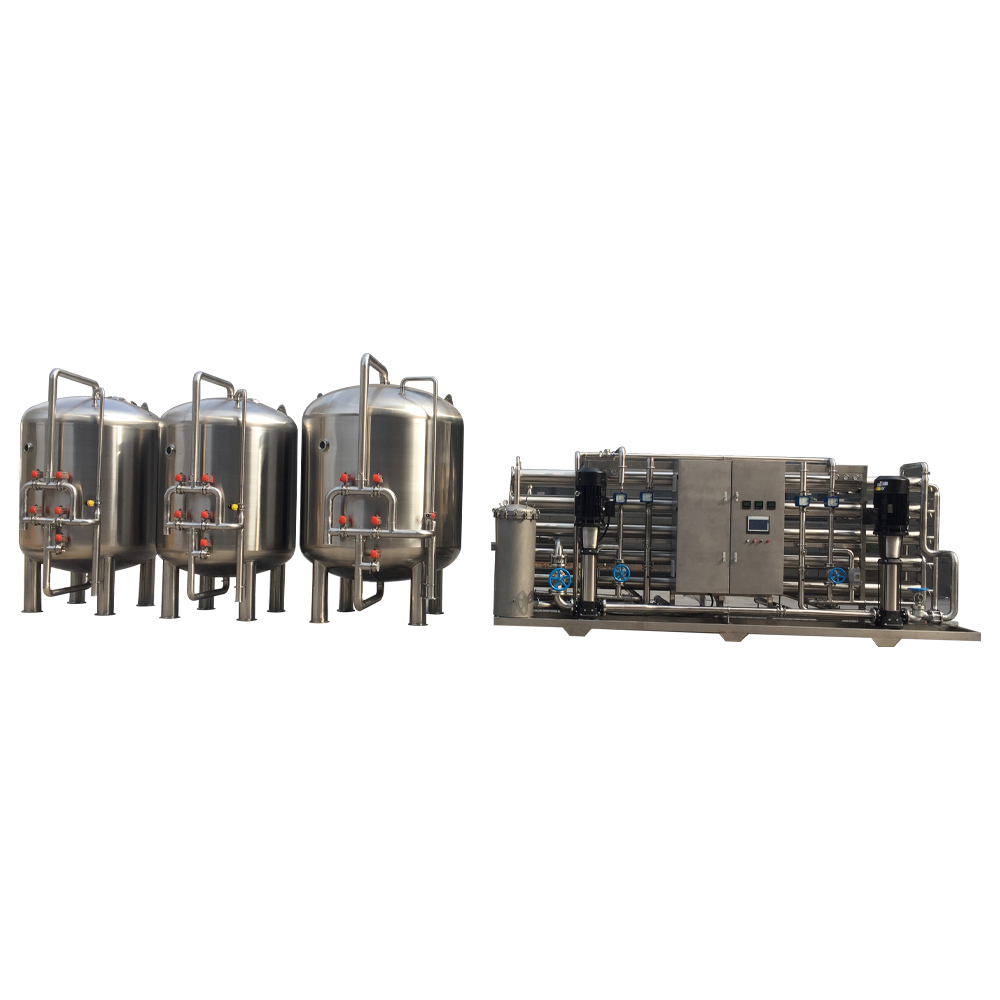

Raw water----Raw water feed pump---Sand filter---Activated carbon filter---Softener (optional)---Cartridge PP filter----High pressure pump---RO system---Pure water tank----UV sterilizer----Fine filter(optional)
CIP system and Antiscalant dosing system are optional.
Advantages:
Fully equipped and customizable | Individually tested and preserved |
Expandable and skid mounted | Low operation and maintenance costs |
Components easily accessible | Easy maintenance and servicing |
Pre-plumbed, wired and assembled | 1-year limited warranty |
Operating condition
Maximum Recovery: 65% - 75%
Nominal Rejection: 95-99%
Maximum Feed Temperature | °C (°F) | 35 (95) | SDI | <5 |
Minimum Feed Temperature | °C (°F) | 5 (41) | Free Chlorine | undetectable |
Maximum Feed Pressure | bar (psi) | 5 (72) | Iron | ppm | <0.1 |
Minimum Feed Pressure | bar (psi) | 2 (29) | Manganese | ppm | <0.05 |
pH (Continuous) |
| 4 ~ 9 | Organic matter | ppm | <1 |
Usage:
1. Bear & drinks filling machinery
2. dairy, beverage
3.biology and pharmacy
4. boiler, brewing
5.electric appliance
6.Electroplate
7. Leather
8.printing and dying
9. painting and dying
10.chemical industry
11.surface treatment etc
