Basic Info.
Model NO.
APL-210 APL410, APL310.
Voltage
AC125V/AC250V/DC30V/DC125V
Terminal
8p
Cable Port
NPT 1/2"
Enclosure
IP67
Water-Proof
Yes
Body Material
Plastic/Aluminum/Stainless Steel
Cap Material
Plastic
Acting Type
Rotary
Working Temp.
-20°c~+60°c
Function
Valve Indicator
Holder
Carbon Steel/Stainless Steel
Certificate
CSA NEMA 4 NEMA 4X IP67 Sil3
Transport Package
Carton Box
Trademark
Fosic
Origin
Made in China
Summary:

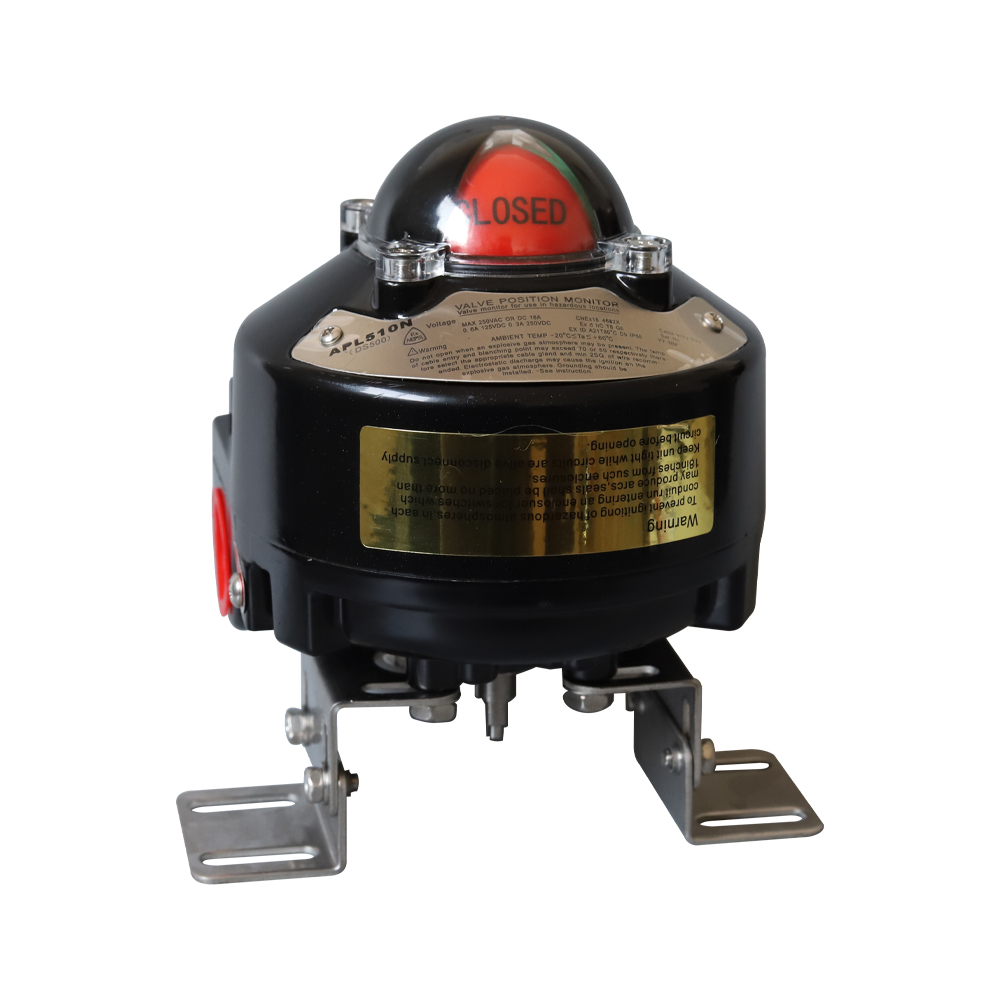

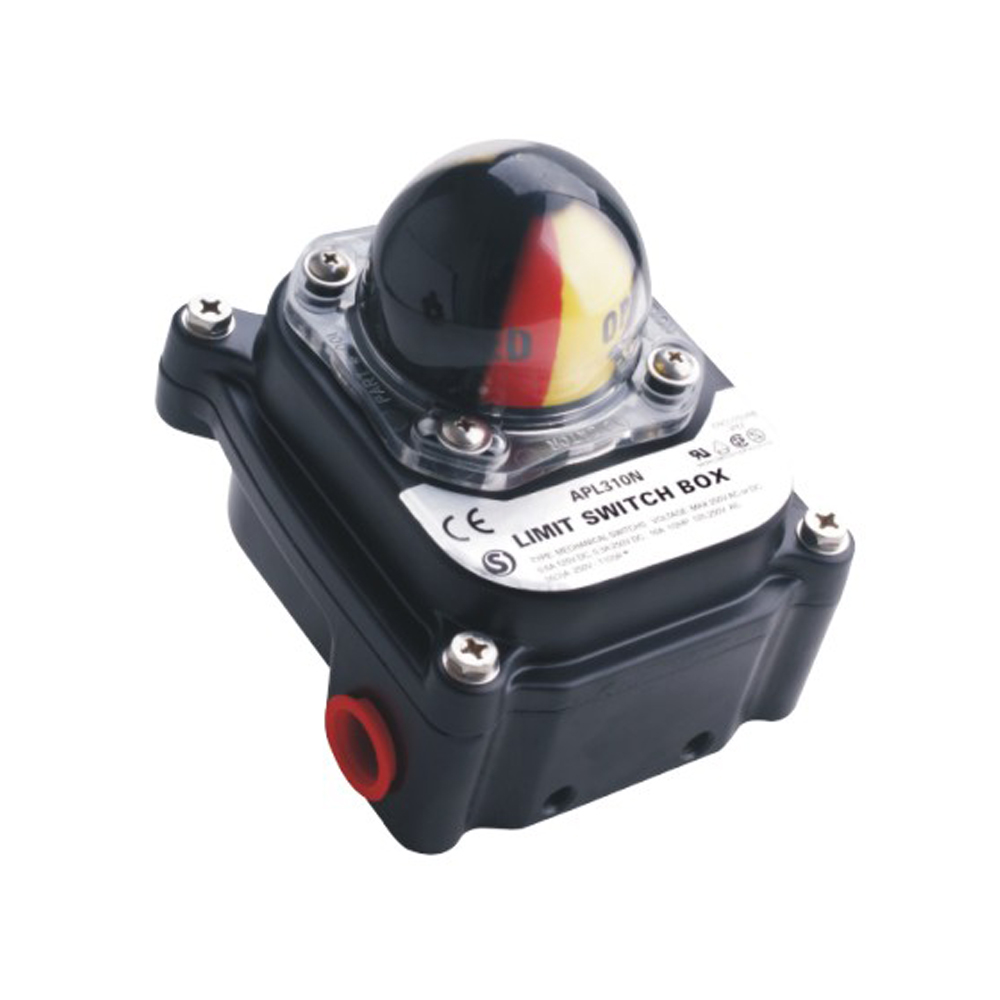

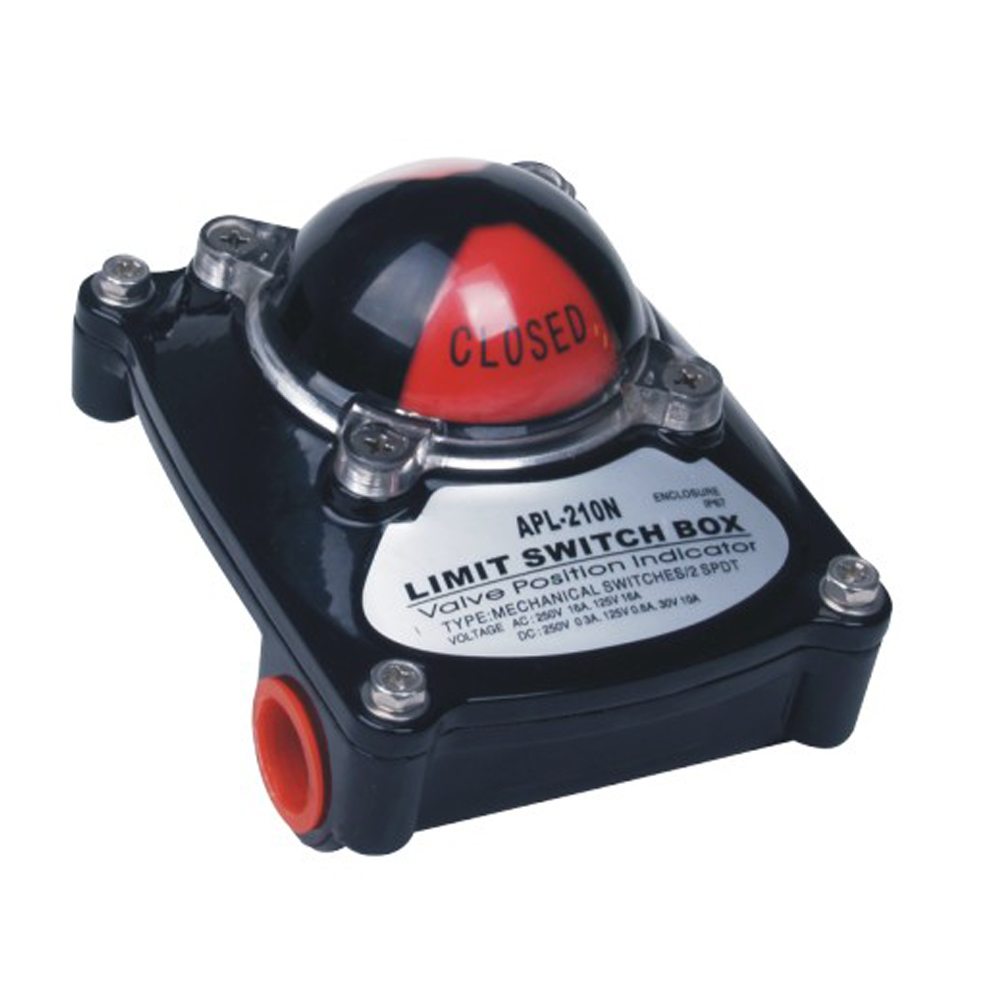

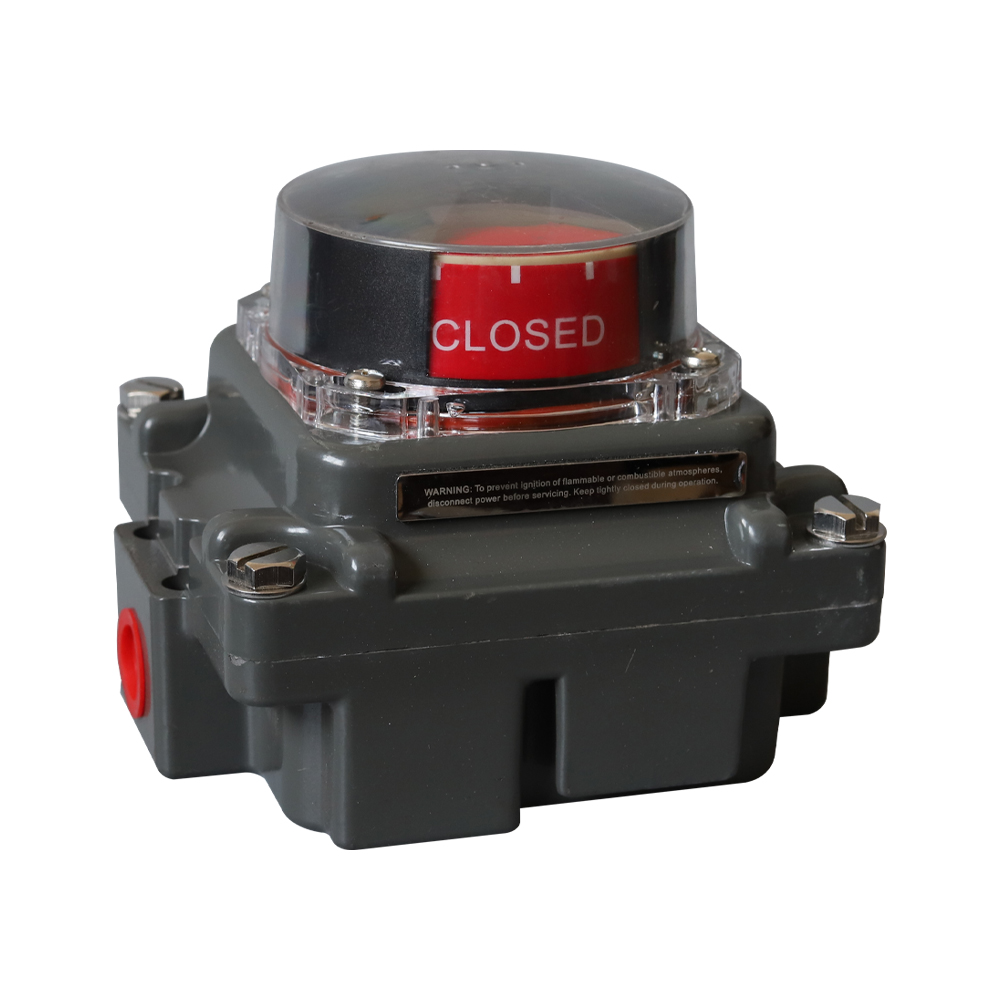

APL-210, APL-310, APL-410 and APL-510 limit travel switch boxes are used to transmit position signals of actuators and valves to field and control stations. It can be installed directly on the top of the actuator, including the standard VDI/VDE3845.
Features:
1. Solid and flexible design.
Aluminium die-casting housing and powder coating. Stainless steel ( 316 ) housing. (APL-5N)
2. Bolts on visual position indicator.
3. Quick-set cam Spring loaded splined cam.
No need to adjust again after initial setting.
Easy setting without tool.
4. Dual cable entries.
5. Captive cover bolts No worry to loose bolts while cover open.
Spring loaded cover bolts ( APL-5N )
6. Easy mounting bracket NAMUR standard stainless steel shaft and bracket.
Order Symbols
FS 3 1 0
3 Shell Type | Ex-proof(Ex dII CT6),Weather Prodtction(IP67) |
1 Switch Type | Mechanical Type: 1 2-SPDT 2 3-SPDT 3 4-SPDT 4 2-SPST 5 2-DSDT 6 2-SPDT+Potoniometer 7 2-SPDT+PTM(4-20mA) Proximity Sensor Type: 8 P&F NJ2-V3-N |
0 Bracket | 0(30x80xH) 1 (30x130xH) |

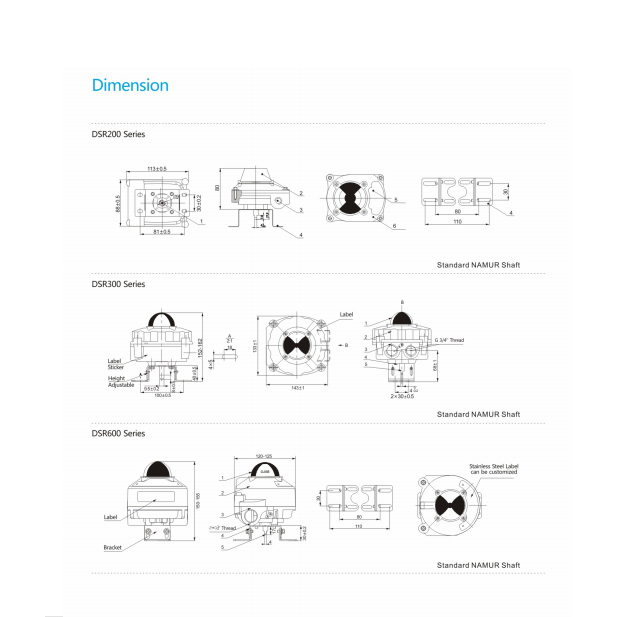

SPECIFICATION
Model | FS 310 |
Standard | Option |
Shell Type | Ex-proof Ex dII CT6 ; Weather ProtectionIP67 |
Ambient Temp | -25ºC~ +85ºC |
Conduit | 2-3/4NPT | PT3/4 PF3/4 |
Terminal Strips | 8 | 9~24 |
Position Indicator | 0~90° | 0~180° |
Open-Yellow Closed-Red |
Switch Rating | Mechanical Type | SPDT | A C | 125/250V 15A |
DC | 25OV 15A |
DPDT | AC | 20A,125/250V;1HP,125V;2HP,250V |
Proximity Sensor Type | 0~25VDC |
Pontoniometer | 1KΩ, 5KΩ, 10KΩ |
Feedback | 4~20mA(20~4mA) |
Material | Aluminum Die casting |
Weight | 1.2kg |
Trademark: FOSIC
Packing:
Normally Plastic PP Bag, Small Box, Cartons and Plywood Cases.
Delivery Time: 25 days after confirmed the order.
Our Services:
1.100% prompt response
2.100% Air pressure test under 0.8Mpa,and keep it in 24 hours
3. Logo OEM Acceptable
4. 180 days warranty.
5. Short delivery time,if we have stock,shipment within 15 days.
6. Shipment: DHL/FEDEX/TNT/OTHERS,BY SEA,BY AIR
