Model NO. FOSIC- Filling Principle: Pressure
Packaging Container Lifting Structure :Pneumatic Lifting
Structure: Linear Packaging:Bottle
Packaging Material: Plastic Key Selling Points:High-Accuracy
Advantage:Engineers Available to Service Machinery Overseas
Filling Accuracy: ±0.5% Application: Food, Beverage, Commodity, Medical, Chemical
Trademark:FOSIC Transport Package:Wooden Box
Specification:2500*1400*2200mm Origin: wenzhou

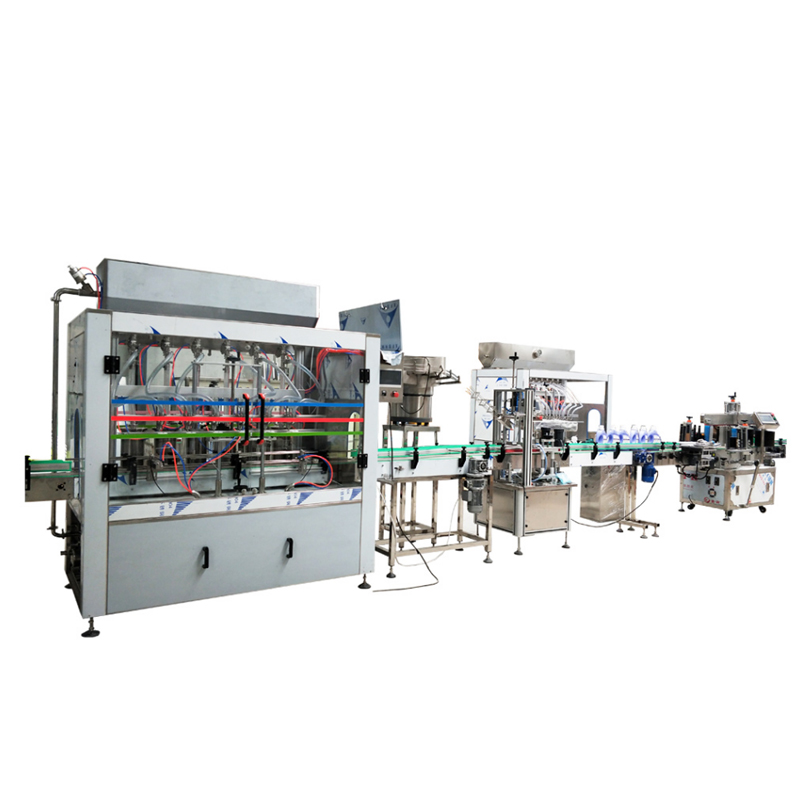

Automatic Filling Shampoo, Liquid Soap, Cream, Sanitizer, Detergent, Conditioner, Fabric Softener, Oil Capping Labeling Machine
Optional Production Speed:
4 Nozzles: | 24 bottles per minute (base on 500ml/bottle) |
6 Nozzles: | 36 bottles per minute (base on 500ml/bottle) |
8 Nozzles: | 48 bottles per minute (base on 500ml/bottle) |
10 nozzles: | 60 bottles per minute (base on 500ml/bottle) |
More options can be customized according to your request. |
02. Product Description:
- Full Automatic glass Plastic Bottle detergent, liquid soap,shampoo filling capping labeling line equipment for factory use
- The machine design and reasonable, with beautiful and nice out look.
- Adopts famous international electric components.Main power cylinder adopts Germany FESTO double function cylinder and electromagnetic switch. Japan MITUBISHI PLC microcomputer,OMRON photoelectric switch, Taiwan touch screen,ensure the outstanding quality and concestent stable function.
- The machine if facilitate to maintain.not need any tool. It's very easy to disassemble and install,cleaning.Adjustment volume could be large range to little range and then to fine adjustment.Could achieve no bottle or lack bottle not filling.High filling volume precision.
-25-250ml,50-500ml,100-1000ml,250-2500ml ,The nozzles and the tank volume could be order according to the customers' requirements. And the nozzles have 6,8,10 can be selected. The tank volume have four types, 25-250ml,50-500ml,100-1000ml,250-2500ml.With adjustable speed conveyor belt, and high strength stainless steel frame, firm and wear-used.
- Considering the different visosities of the materials, specialize equip with drip-proof filling chock plug and dive raising and declining system. In order to filling ain at the bottle ,design crosswise bayonet device, ensure position accurately.
- The all filling system adopt clamp type facilitate install sanitary connections. The whole tank up and down could easy disassemble/clean and install without any tool. It's structure is simple and easy to operate and maintain.
03. Main Composition:
- Automatic Filling machine is controlled by computer via an auxiliary device (such as a cylinder block bottle system, stop bottles system, lifting system, feeding control, counting devices, etc.) to complete the automatic filling in the absence of personal operating conditions.
Special oll filltng machine - piston cylinder.
As shown in the picture, a new cylinder liner in the pis ton bottom will be much more flexible than the unable disassembled and washed traditional cylinder, You can use touch screen to separate piston and cylinder liner, inorder to easier cleaning for residual materials. easy choose different mode for different materlal.
Commonly used oil filling valve. 1/Widely used in filling machinery.especially suitable for fining vis cous material. 2/Fast filling speed. precision and stability 3/Delicate and small. easy ror arrangement or pipe arrangement
4/Speclal seal design at the bottom of the filling nozzle, filling without dripping. 5/Chamfering structure on the bottom of filling head.with ofientati on effect and submersible filling.
2 - Twisting Capping Machine.
This machine is suitable for glass bottle and plastic bottle ,screw/thread caps twisting ,it can used in a wide range of
bottles(with differen top diameter ), by adjust the machines but not change parts. Also, the speed is quicker than disc capper.
Advantage : for different size bottles and caps, it do not need to change any part. The machine can be adjust from right & left, up and down, very convenience.
3 - Automatic Double Side labeling machine.
1/Adopt mature PLC control technology, make the machine stable and high-speed
2/Can be suitable for square /round/oval flat bottles at the same time
3/Use touch screen control system, make operation simple, practical and efficient
4/Screw adjust the suppression mechanism, high accuracy
5/Tranparent label sensor is for optional
6/Can be customized according to your requirement
